FT11 Trailer

Login to view Price

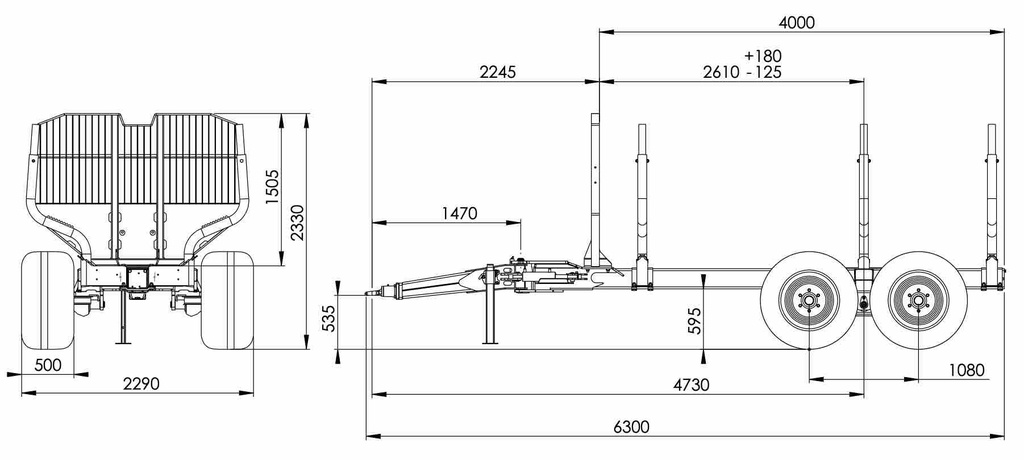

Specifications for FT11 Trailer

Cargo Module (A3+BL) Bolsters 3 pairs + bolster lock or (A4+BL) Bolsters 4 pairs + bolster lock or (A4Ex+BL) Frame extension, bolsters 4 pairs+bolster lock
Coupling (C2) German high type drawbar without hitch or (C3) Austrian low type drawbar without hitch

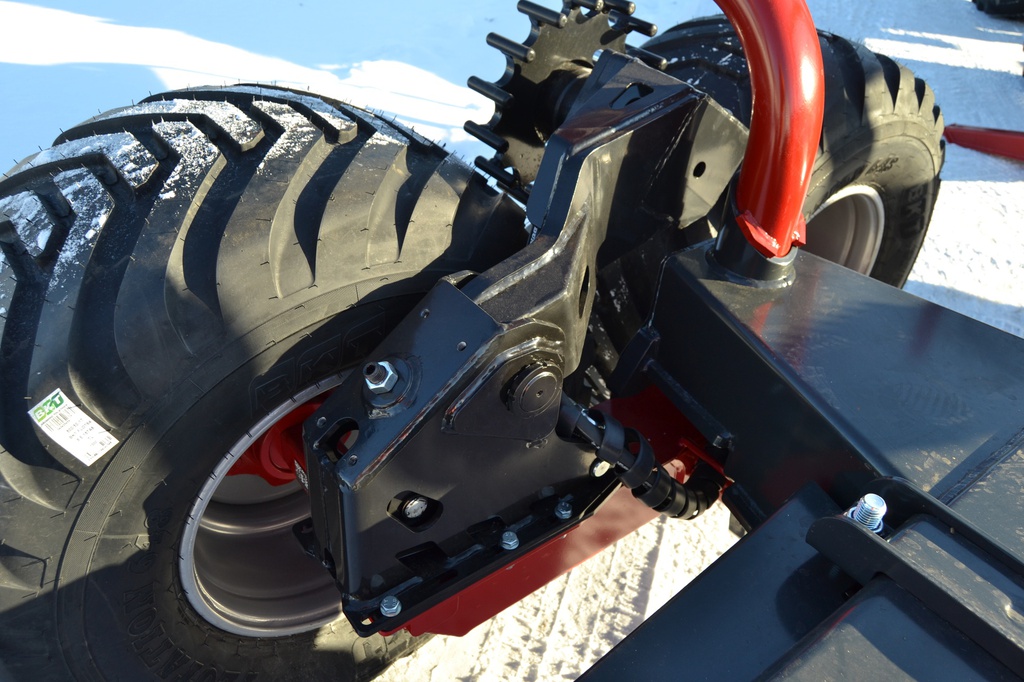

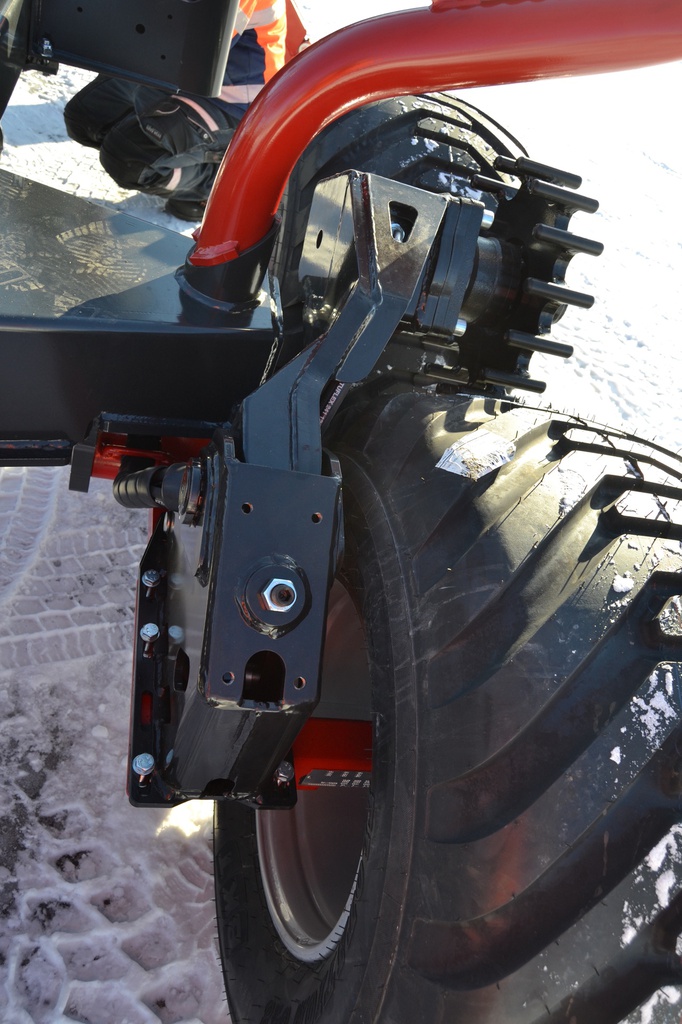

Drive Without drive or (RWD) Roller-drive, tractor hydraulic or (RWD+) Roller-drive with elect. control system or (25WDF) Front 2WD BB incl. electronic speed control or (25WDR) Rear 2WD BB inc. electronic speed control
Wheel set (WH3.6) 500/50-17 RF-rim, 6 holes or (WH5.6) 400/55-22,5 RF-rim, 6 holes or (WH0) Without wheels
Traffic Requirements Off-road use or (TK) Road traffic kit (number plate holder frame with LED-s, wheel stoppers)
Brakes (B0) Without brakes or (B1) Hydraulic brakes 2 wheels or (B2) Hydraulic brakes 4 wheels or (B3) Air brakes 2 wheels or (B4) Air brakes 4 wheels or (B1+B3) Pneumatic brakes 2 wheels, hydraulic brakes 2 wheels or (B0-2WD) 2WD bogies without brakes or (B1-2WD) 2WD bogies with hydraulic brakes on 2 wheels, with motors and hoses cover on frame or (B2-2WD) bogies with hydraulic brakes on 4 wheels, with motors and hoses cover on frame or (B3-2WD) 2WD bogies with pneumatic brakes on 2 wheels, with motors and hoses cover on frame or (B4-2WD) 2WD bogies with pneumatic brakes on 4 wheels, with motors and hoses cover on frame
Supply of Hydraulics Tractor hydraulics or (P1+T2+) Piston pump on the drawbar, 65L @650rpm, Tank, 95L oil-filled with HVLP oil or (P2+T2+) Piston pump on the drawbar, 82L @650rpm, Tank, 95L oil-filled with HVLP oil or (P4+T2+) Piston pump with multiplier on the drawbar, 98L @650rpm, Tank, 95L oil-filled with HVLP oil or (P6+T2+) Load sensing pump with multiplier on the drawbar, 120L @650rpm, Tank, 95L oil-filled with HVLP oil or (P4PTO+T2+) Piston pump with female-multiplier to PTO, 98L @650rpm, Tank, 95L oil-filled with HVLP oil or (P6PTO+T2+) Load sensing pump with female-multiplier to PTO, 98L @650rpm, Tank, 95L oil-filled with HVLP oil
Control Unit Without platform or (D1) Platform with back support on the drawbar (PSH option must be selected for crane)
Biomass Box (Bbox) Yes or No Biomass box
Bolt (K1) Bolt on turning eye 50mm (100x110) only if C2 or C3 drawbar have been chosen or (K2) Bolt on fixed eye 40mm (100x110) only if C2 or C3 drawbar have been chosen or (K3) Bolt on K-80 eye (100x110) only if C2 or C3 drawbar have been chosen
Parking support leg (SL) Removable parking support leg on drawbar or (SJ) Removable parking support jack on drawbar
LED Lights No Lights or (L2) Rear LED lights Kilpi with flexible arm, reflectors
Oil cooling package (CP2) Oil cooling package, attached to the tank, only with T2 or T2+ or No oil cooling package
Parking brake (PB1) Parking brake, actuators at wheels (only with FT11 trailer) or No parking brake
