Public Pricelist

FT9 Trailer

Login to view Price

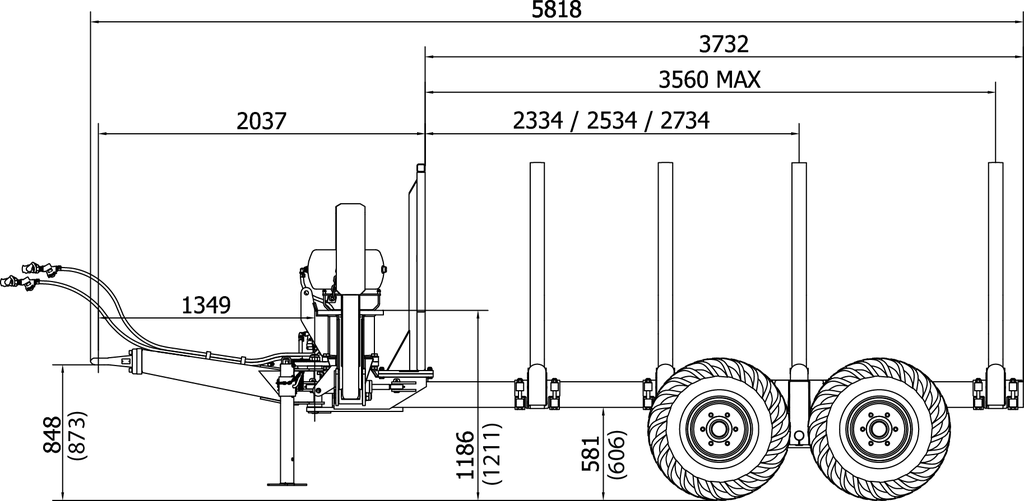

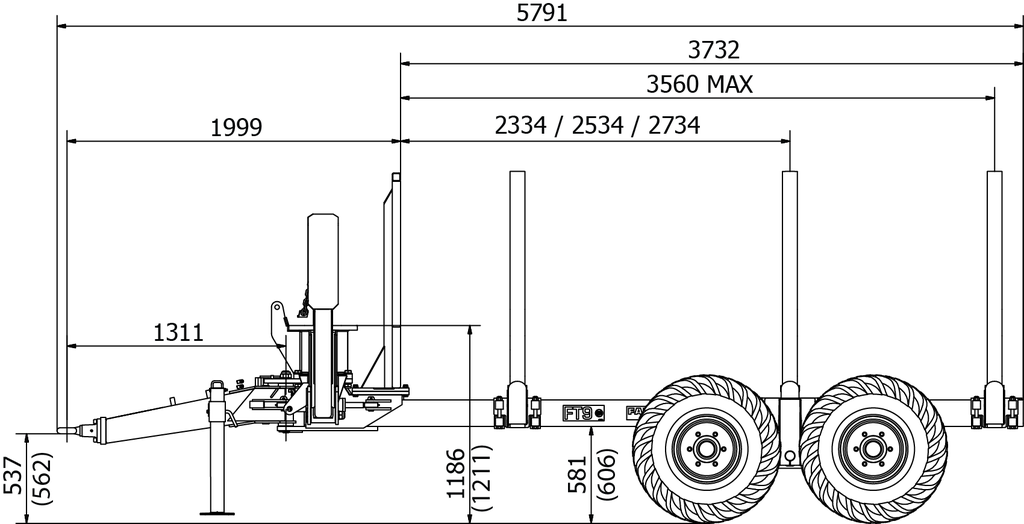

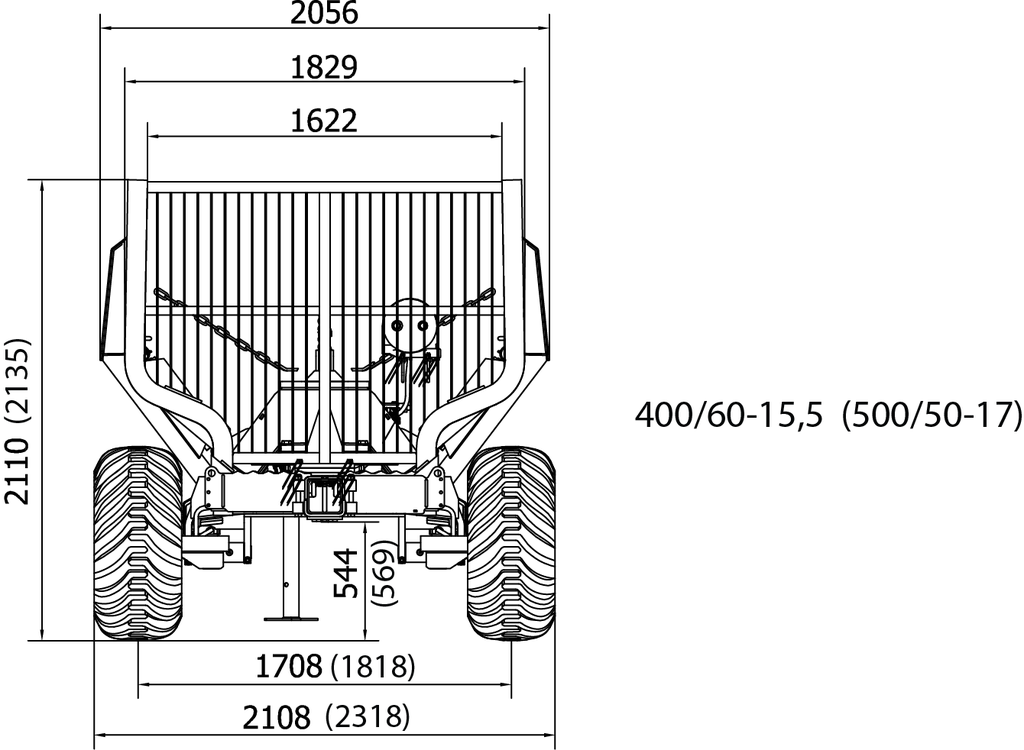

Specifications for FT9 Trailer

Cargo Module (A3+BL) Bolsters 3 pairs + bolster lock or (A4+BL) Bolsters 4 pairs + bolster lock or (A4Ex+BL) Frame extension, bolsters 4 pairs+bolster lock
Coupling (C1) Scandinavian low type drawbar with welded swiveling hitch or (C2) German high type drawbar without hitch or (C3) Austrian low type drawbar without hitch or (C7) High type Rückmatic overrun drawbar
Bolt Not applicable (with drawbar C1) or (K1) Bolt on turning eye 50mm (100x110) only if C2 or C3 drawbar have been chosen or (K2) Bolt on fixed eye 40mm (100x110) only if C2 or C3 drawbar have been chosen or (K3) Bolt on K-80 eye (100x110) only if C2 or C3 drawbar have been chosen
Wheel set (WH2.6e) Wheels 400/60-15,5 RF-rim, 6 holes or (WH3.6_ET-70) Wheels 500/50-17 ET-70 RF-rim, 6 holes or (WH0) Without wheels
Traffic Requirements Off-road use or (TK) Road traffic kit (number plate holder frame with LED-s, wheel stoppers) or (WB) Wheel stoppers
Brakes (B0) Without brakes or (B1) Hydraulic brakes 2 wheels or (B2) Hydraulic brakes 4 wheels or (B3) Air brakes 2 wheels or (B4) Air brakes 4 wheels or (B1+B3) Pneumatic brakes 2 wheels, hydraulic brakes 2 wheels or (B0-C7) Rückmatic overrun bogies with brakes on 2 wheels or (B1-C7) Rückmatic overrun bogies with Rückmatic brakes on 2 wheels and hydraulic brakes on 2 wheels
Supply of Hydraulics Trailer and crane connected to tractor hydraulics or (P1+T2+) Piston pump on the drawbar, 65L @650rpm, Tank, 95L oil-filled with HVLP oil or (P2+T2+) Piston pump on the drawbar, 82L @650rpm, Tank, 95L oil-filled with HVLP oil
Control Unit Without platform or (D1) Platform with back support on the drawbar (PSH option must be selected for crane) or (D2) Platform with back support for trailer with overrun front brakes
Biomass Box (Bbox) Yes or No Biomass box
LED Lights No Lights or (L2) Rear LED lights Kilpi with flexible arm, reflectors and frame cover
