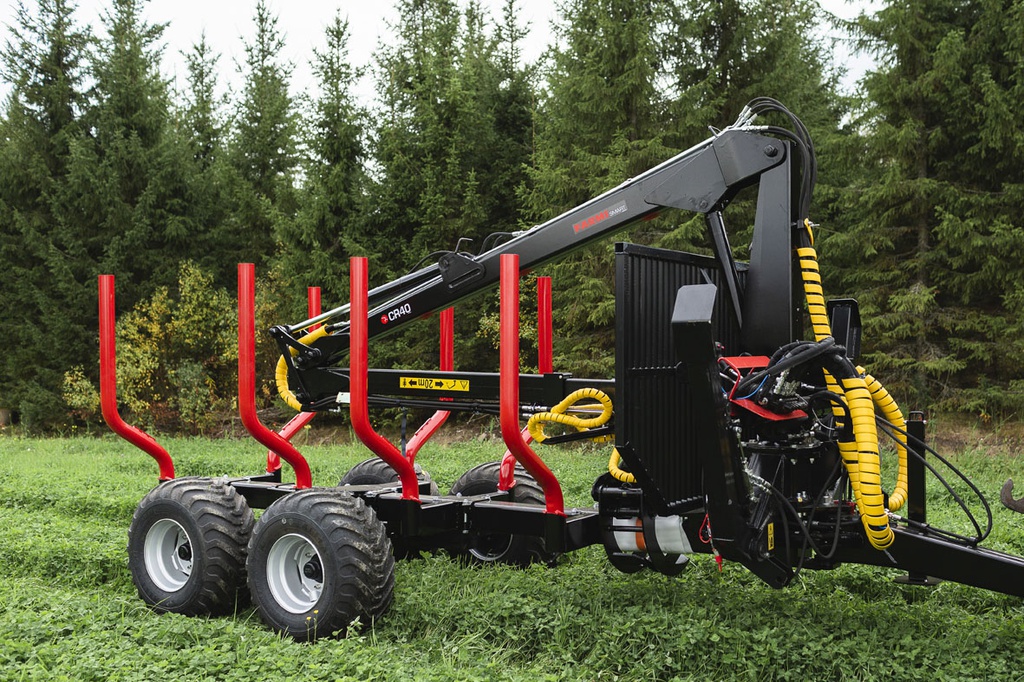

FT9 Trailer (M26)

Cargo Module	(A3) Bolster 3 pairs or (A4) Bolster 4 pairs or (A4Ex+BL) Frame extension, bolsters 4 pairs+bolster lock
Drawbar	(C1) Scandinavian low or (C2) German high or (C3) Austrian low or (C7) High type Rückmatic overrun
Hitch	Welded swivelling or (K1) Bolted, swivelling D50 (100x110) or (K2) Bolted, fixed D40 (100x110) or (K3) Bolted K-80 (100x110) or Fixed
Brakes	(B0) unbraked or (B1) Hydraulic, 2 hubs or (B2) Hydraulic, 4 hubs or (B3) Air, 2 hubs or (B4) Air, 4 hubs or (B0-C7) Rückmatic overrun brakes on 2 hubs or (B1-C7) Rückmatic overrun brakes, 2 hubs + hydraulic, 2 hubs
Parking brake	No or (PB1) Actuators at wheels
Hydraulic supply	Tractor hydraulics or (P7+T1+) Piston pump on drawbar, 50L/min@650rpm, tank 40L HVPL32 oil or (P1+T2+) Piston pump on the drawbar, 65L @650rpm, Tank, 95L oil-filled with HVLP oil or (P2+T2+) Piston pump on the drawbar, 82L @650rpm, Tank, 95L oil-filled with HVLP oil
Operator platform	(D0) No platform or (D1) Platform with back support or (D2) Platform with back support (C7)
Wheels	(WH0) w/o wheels or (WH2.6) 400/60-15,5 std. rim, 6 holes or (WH3.6) 500/50-17 RF-rim, 6 holes or (WH4.6) 480/45-17 RF-rim, 6 holes
