Allgemeine Preisliste

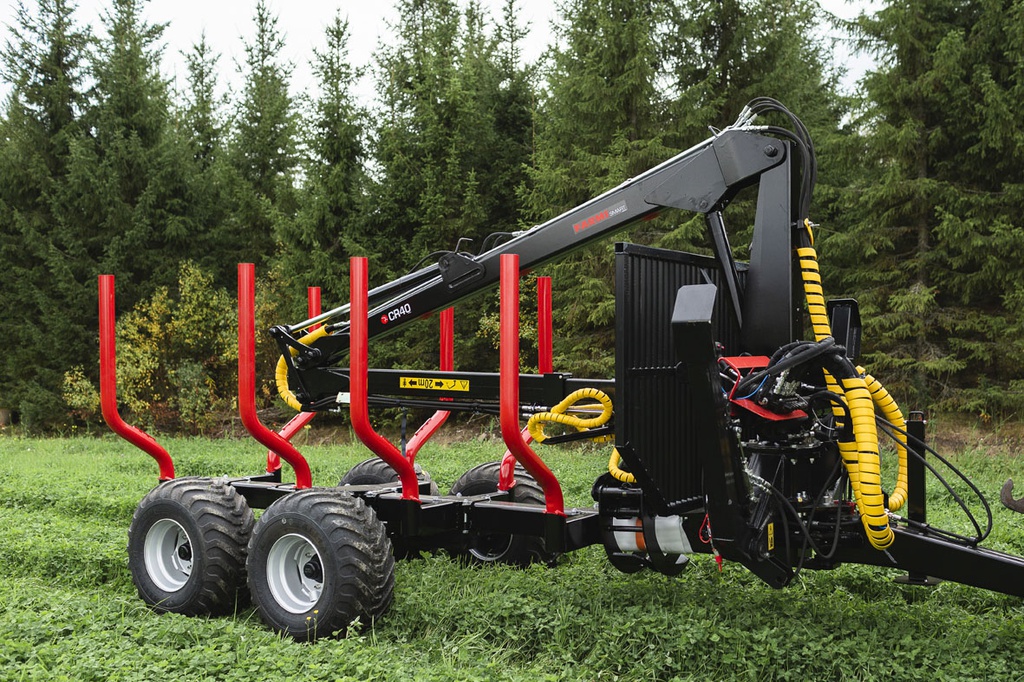

FT9 Trailer (M26)

Login to view Price


Specifications for FT9 Trailer (M26)

Cargo Module (A3) Bolster 3 pairs or (A4) Bolster 4 pairs or (A4Ex+BL) Bolsters 4 pairs + bolster lock + frame extension
Drawbar (C1) Draw bar down, turning eye or (C2) Draw bar up, fixed eye or (C5) Draw bar down, fixed eye or (C6) Draw bar up, fixed eye, fastening for pump
Hitch Not available with drawbar C1 or (K1) Bolt on turning eye 50mm (100x110) only if C2 or C3 drawbar have been chosen or (K2) Bolt on fixed eye 40mm (100x110) only if C2 or C3 drawbar have been chosen or (K3) Bolt on K-80 eye (100x110) only if C2 or C3 drawbar have been chosen or Fixed
Brakes (B0) Without brakes or (B1) Hydraulic brakes 2 wheels or (B2) Hydraulic brakes 4 wheels or (B3) Air brakes 2 wheels or (B4) Air brakes 4 wheels or Pneumatic brakes, 2 wheels SAFE or (B1-C7) Rückmatic overrun drawbar with B1 hydraulic brakes
Parking brake No parking brake or (PB1) Parking brake, actuators at wheels (only with FT11 trailer)
Hydraulic supply Tractor hydraulics or (P7+T1+) Piston pump on drawbar, at 650p/min - 50L/min, tank 40L filled with HVPL32 oil or (P1+T2+) Piston pump on the drawbar, 65L @650rpm, Tank, 95L oil-filled with HVLP oil or (P2+T2+) Piston pump on the drawbar, 82L @650rpm, Tank, 95L oil-filled with HVLP oil
Operator platform (D0) No platform or (D1) Platform with back support on the drawbar or (D2) Platform with back support for trailer only with C7 drawbar
Wheels (WH0) Without wheels or (WH2.6) 400/60-15,5 std. rim, 6 holes or (WH3.6) Wheel set 500/50-17 RF-rim, 6 holes or (WH4.6) Wheel set 480/45-17 RF-rim, 6 holes
