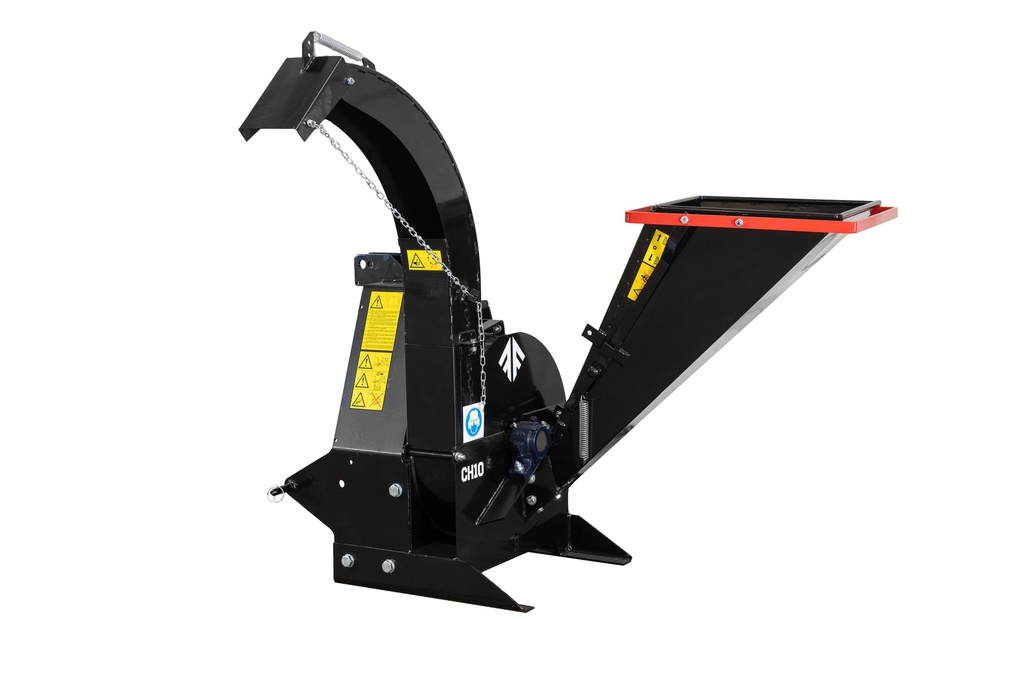

CH10 Chipper
CH10 is a disc model wood chipper that is light but has a sturdy structure and is suitable for landscaping branches, tree crowns and small tree trunks. The maximum diameter for processed materials is 100 mm. Compared to a shredder, this wood chipper has a robust structure. The infeed chute is a drop-down chute to which it is also easy to feed short materials. The available disc models include a tractor-operated model and a hydraulic engine operated model.
| Technical details | |||
|---|---|---|---|
| Application: landscaping | |||
| Output, m3/h | 0.5–2 | ||
| Thickness of chip, mm | 12 | ||
| Max. log diameter, mm | 100 | ||
| Power demand, kW | 7.5–30 | ||
| Speed of rotation, rpm | 540 / 1000 | ||
| Number of knives, pc | 2 | ||
| Chipper weight, kg | 193 / 210 | ||
| Rotor diameter, mm | 550 | ||
| Rotor weight, kg | 46 | ||
| Three-point mounting | Standard | ||
| Discharge pipe turning to two sides |
Specifications for CH10 Chipper
| Double Speed | No Double Speed or Double Speed |
| Power supply | Tractor PTO 540 rpm - 1000 rpm |
