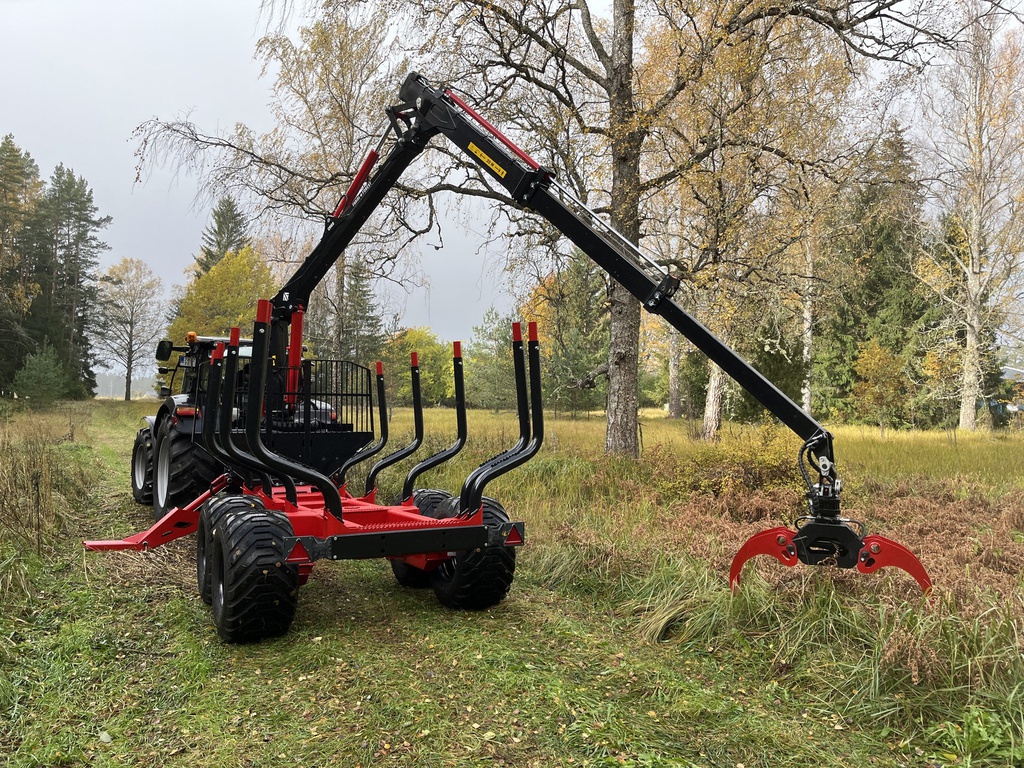

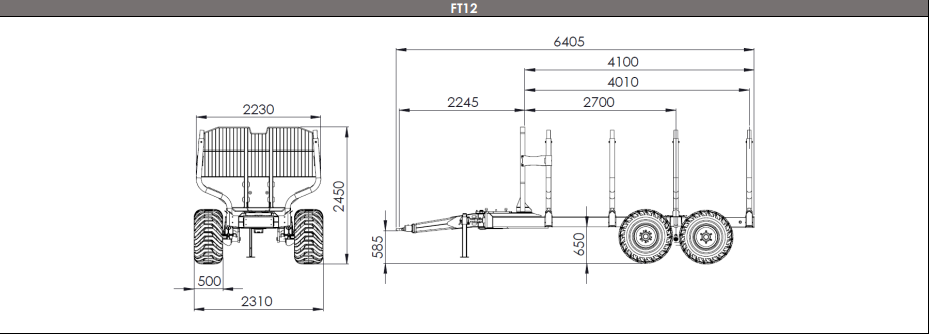

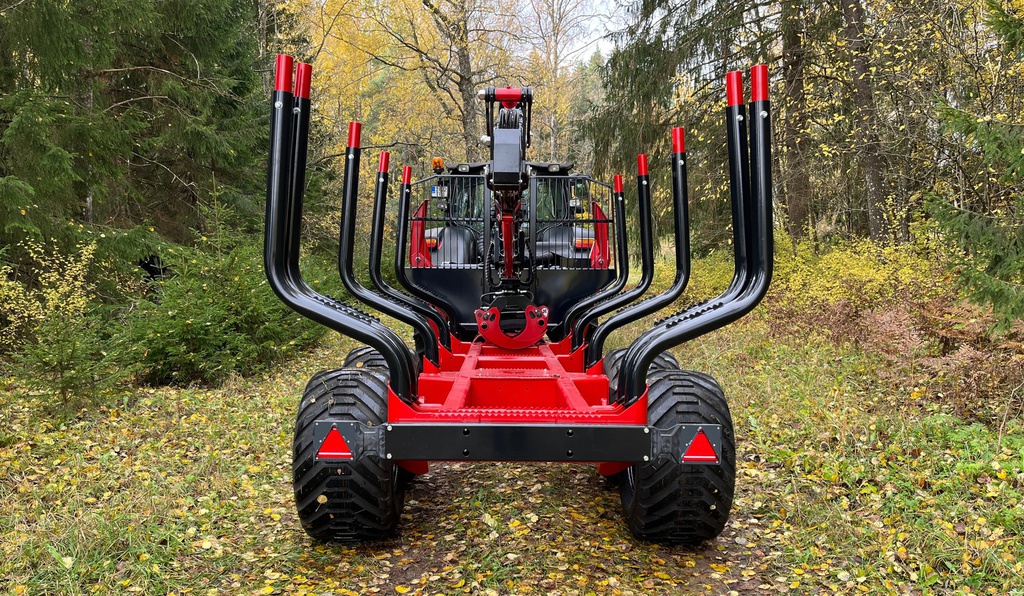

Specifications for FT12 Trailer 2WD
| Crane accessories | |
|---|---|
| Control valve | Without platform or (D1) Platform with back support on the drawbar (PSH option must be selected for crane) |
| Trailer accessories | |
| Cargo Module | (A3+BL) Bolsters 3 pairs + bolster lock or (A4+BL) Bolsters 4 pairs + bolster lock or (A4Ex+BL) Frame extension, bolsters 4 pairs+bolster lock or (A5Ex+BL) Trailer with frame extension and 5 pair of bolsters + bolster lock |
| Drawbar | (C3) Austrian low type drawbar without hitch or (C2) German high type drawbar without hitch |
| Wheels | (WH0) Without wheels or (WH3.8) 500/50-17 RF-rim, 8 holes or (WH6.8) 550/45-22,5 RF-rim, 8 holes or (WH8.8) 500/45-22,5 RF-rim, 8 holes |
| Brakes | (B0) Without brakes or (B1) Hydraulic brakes 2 wheels or (B2) Hydraulic brakes 4 wheels or (B3) Air brakes 2 wheels or (B4) Air brakes 4 wheels |
| Hydraulic supply | Trailer and crane connected to tractor hydraulics or (P1+T2+) Piston pump on the drawbar, 65L @650rpm, Tank, 95L oil-filled with HVLP oil or (P2+T2+) Piston pump on the drawbar, 82L @650rpm, Tank, 95L oil-filled with HVLP oil or (P4+T2+) Piston pump with multiplier on the drawbar, 98L @650rpm, Tank, 95L oil-filled with HVLP oil or (P6+T2+) Load sensing pump with multiplier on the drawbar, 120L @650rpm, Tank, 95L oil-filled with HVLP oil or (P4PTO+T2+) Piston pump with female-multiplier to PTO, 98L @650rpm, Tank, 95L oil-filled with HVLP oil or (P6PTO+T2+) Load sensing pump with female-multiplier to PTO, 98L @650rpm, Tank, 95L oil-filled with HVLP oil |
| Traffic kit | (TK) Road traffic kit (number plate holder frame with LED-s, wheel stoppers) or (WB) Wheel stoppers or Off-road use |
| Oil cooling package | (CP2) Oil cooling package, attached to the tank, only with T2 or T2+ or No oil cooling package |
| Hitch | (K1) Bolt on turning eye 50mm (100x110) only if C2 or C3 drawbar have been chosen or (K1.1) Bolt on HD swiveling eye 50mm (110x100) only if C2 or C3 drawbar have been chosen or (K2) Bolt on fixed eye 40mm (100x110) only if C2 or C3 drawbar have been chosen or (K3) Bolt on K-80 eye (100x110) only if C2 or C3 drawbar have been chosen |
| LED Lights | No Lights or (L2) Rear LED lights Kilpi with flexible arm, reflectors and frame cover |
| Biomass Box | No Biomass box or (Bbox) Yes |
| Parking support leg | (SL) Removable parking support leg on drawbar or (SJ) Removable parking support jack on drawbar |
| Drive | 2WD hub-drive (Black Bruin) |
| Uncategorized | |
| Parking brake | No parking brake or (PB1) Parking brake, actuators at wheels (only with FT11 trailer) |
