Public Pricelist

FT13 Trailer

Login to view Price

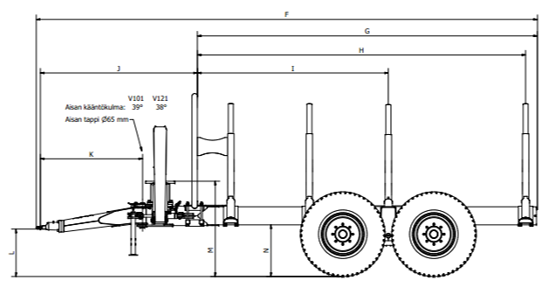

Specifications for FT13 Trailer

Cargo Module (A3+BL) Bolsters 3 pairs + bolster lock or (A4+BL) Bolsters 4 pairs + bolster lock or (A4Ex+BL) Frame extension, bolsters 4 pairs+bolster lock or (A5Ex+BL) Trailer with frame extension and 5 pair of bolsters + bolster lock
Drawbar (C2) German high or (C3) Austrian low
Hitch Welded swivelling or (K1.1) Bolted HD, swiveling D50 (110x100) or (K2) Bolted, fixed D40 (100x110) or (K3) Bolted K-80 (100x110)
Drive (RWD0) Without drive or (RWD) Roller-drive, tractor hydraulic or (RWD+) Roller-drive with elect. control system
Brakes (B0) unbraked or (B1) Hydraulic, 2 hubs or (B2) Hydraulic, 4 hubs or (B3) Air, 2 hubs or (B4) Air, 4 hubs or (B1+B3) Air, 2 hubs + hydraulic, 2 hubs
Hydraulic supply Tractor hydraulics or (P1+T2+) Piston pump on the drawbar, 65L @650rpm, Tank, 95L oil-filled with HVLP oil or (P2+T2+) Piston pump on the drawbar, 82L @650rpm, Tank, 95L oil-filled with HVLP oil or (P4+T2+) Piston pump with multiplier on the drawbar, 98L @650rpm, Tank, 95L oil-filled with HVLP oil or (P6+T2+) Load sensing pump with multiplier on the drawbar, 120L @650rpm, Tank, 95L oil-filled with HVLP oil or (P4PTO+T2+) Piston pump with female-multiplier to PTO, 98L @650rpm, Tank, 95L oil-filled with HVLP oil or (P6PTO+T2+) Load sensing pump with female-multiplier to PTO, 98L @650rpm, Tank, 95L oil-filled with HVLP oil
Oil cooling package (CP0) No or (CP2) Yes, on T2 or T2+
Parking support leg (SL) Removable parking support leg on drawbar or (SJ) Removable parking support jack on drawbar
Operator platform (D0) No platform or (D1) Platform with back support
Traffic kit (TK0) No traffic kit or (TK) Road traffic kit (number plate holder frame with LED-s, wheel stoppers)
Wheels (WH0) w/o wheels or (WH3.8) 500/50-17 RF-rim, 8 holes or (WH6.8) 550/45-22,5 RF-rim, 8 holes or (WH7.8) 600/50-22,5 RF-rim, 8 holes or (WH8.8) 500/45-22,5 RF-rim, 8 holes or (WH6.8V) 550/45-22,5 RF-rim, 8 holes, Tractor pattern or (WH9.8V) 600/40-22,5 RF-rim, 8 holes, Tractor pattern
Biomass Box No Biomass box or (Bbox) Yes
LED Lights No Lights or (L2) Rear LED lights Kilpi with flexible arm, reflectors and frame cover
